উৎপত্তি স্থল: | চীন |
পরিচিতিমুলক নাম: | Chint |
সাক্ষ্যদান: | CE,CCC,CB etc. |
মডেল নম্বার: | CJX2-এন |
ন্যূনতম চাহিদার পরিমাণ: | 1 ইউনিট |
---|---|
মূল্য: | USD15~USD138 |
প্যাকেজিং বিবরণ: | স্ট্যান্ডার্ড এক্সপোর্ট শক্ত কাগজ |
ডেলিভারি সময়: | 5-8 কার্যদিবস বা বাল্ক অর্ডার আলোচনা করে |
পরিশোধের শর্ত: | T/T, পশ্চিম ইউনিয়ন |
যোগানের ক্ষমতা: | 1,000pcs / মাস |
9-95A | বিদ্যুতের ধরণ: | এসি, এসি / ডিসি | |
---|---|---|---|
প্রধান সার্কিট রেটিং ভোল্টেজ: | 600V, 220V, 380V, 110V, 24V | মেরু সংখ্যা: | 3,4 |
ফেজ: | 3,1Phase | কম্পাঙ্ক: | 50 60 হার্টজ |
পণ্যের নাম: | এসি যোগাযোগকারী সিজেএক্স 2 এন-ডি09,3 মেরু এসি যোগাযোগকারী Contact | বর্তমান রেট দেওয়া হয়েছে: | 95A |
আদর্শ: | IEC60947, bn / IEC60947-4-1 | ||
লক্ষণীয় করা: | এসি কন্টাক্টর স্যুইচ,সেন্ট্রাল এসি কন্টাক্টর |

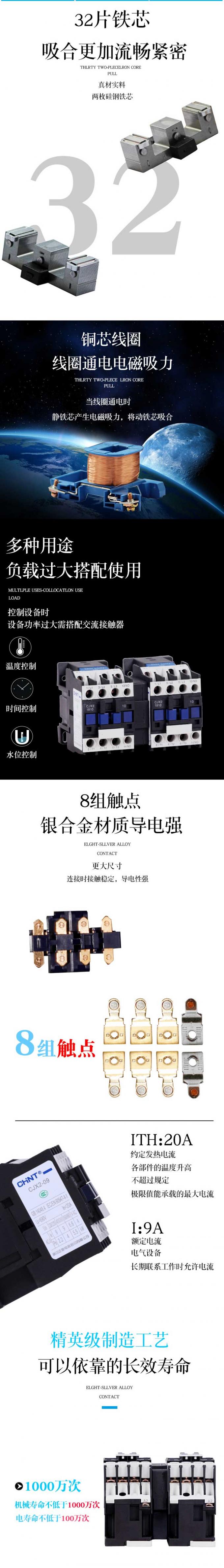

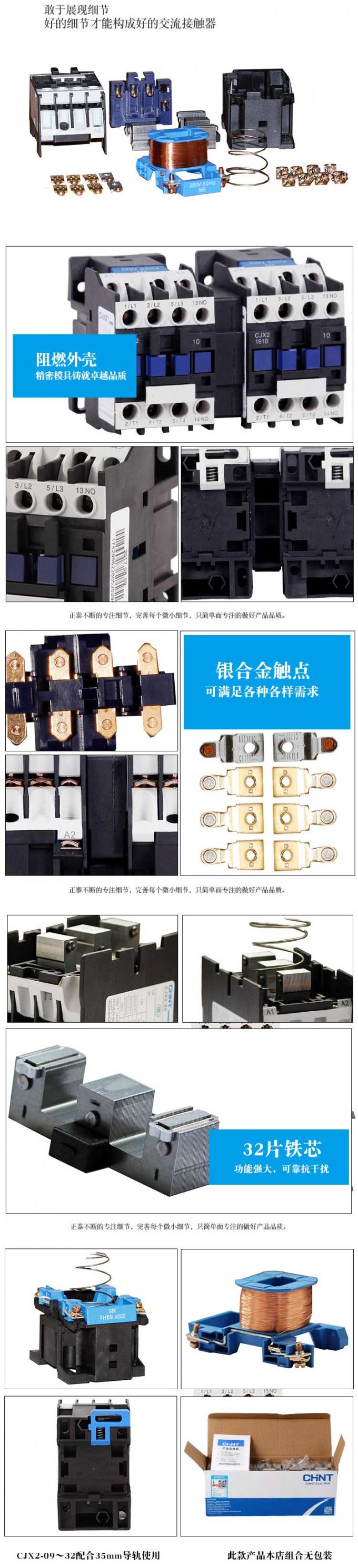

চিন্ত সিজেএক্স 2-এন এসি বিপরীত কন্টাক্টর 3 পি, 4 পি 9 এ ~ 95 এ 1810, 2510, 3210, 6511, এসি -3 এসি -1 কয়েল ভোল্টেজ 24 ভি, 110 ভি, 230 ভি, 380 ভি
চরিত্রগত
• বর্তমান পরিসীমা 09 ~ 95A;
• এসি, ডিসি নিয়ন্ত্রণ কয়েল alচ্ছিক (ডিসি কয়েল থেকে 38 এ);
Star বিভিন্ন ধরণের স্টার্টার পাওয়া যায়: স্ট্যান্ডার্ড মোটর স্টার্ট কানেক্টর, রিভারসিবল কানেক্টর, স্টার-ডেল্টা স্টার্টারস, অটোট্রান্সফর্মার স্টার্টার ইত্যাদি etc.
; Alচ্ছিক সংযোগ: বল্টু সংযোগ (09 ~ 620A), রিং টার্মিনাল সংযোগ (09 ~ 38A), টার্মিনাল সংযোগ (40 ~ 65A), গ্রাহক ইনস্টলেশনের জন্য সুবিধাজনক;
Certific পণ্য শংসাপত্র: সিসিসি, সিই, সিসিএস;
সুবিধা
• কমপ্যাক্ট ইনস্টলেশন
> 38 এ সংযোগকারী এবং সুরক্ষা উপাদানগুলি কেবল 45 মিমি প্রশস্ত
> প্রচলন দমনকারী ইনস্টলেশন কোনও সরঞ্জামের প্রয়োজন হয় না এবং আরও জায়গা না নিয়ে সরাসরি যোগাযোগকারীর মধ্যে intoোকানো যায়
> বিপরীত যোগাযোগকারী মাত্র 90 মিমি প্রশস্ত, যান্ত্রিক ইন্টারলকিং অতিরিক্ত স্থান নেয় না, ইনস্টলেশন প্রায় সময় নেয় না no
> স্টার্টার উপাদানগুলি দ্রুত এবং সহজ সমাবেশের জন্য প্রাক-তারযুক্ত মডিউল সরবরাহ করে
Ly অত্যন্ত সংহত
> 100A কন্টাক্টর ইন্টিগ্রেশন 1 থেকে সাধারনত খোলা / 1 সাধারণত সহায়তার সাথে যোগাযোগ বন্ধ করুন
> অন্তর্নির্মিত দ্বি-নির্দেশমূলক দমন ডায়োড সহ ডিসি কয়েল
> অন্তর্নির্মিত দ্বি-নির্দেশমূলক দমন ডায়োডের সাথে বিপরীত যোগাযোগকারী গ্রুপ
• নিরাপদ এবং নির্ভরযোগ্য
> নিয়ন্ত্রণ এবং সুরক্ষা উপাদানগুলির প্রধান সার্কিট এবং নিয়ন্ত্রণ সার্কিটটি পরিষ্কারভাবে আলাদা করা যায়
> মিররযুক্ত যোগাযোগের নকশা যা সুরক্ষার মান পূরণ করে, 10 মিলিয়ন নির্ভরযোগ্য ক্রিয়াগুলি নিশ্চিত করে
> সুরক্ষামূলক কভার যোগাযোগের দুর্ঘটনাজনিত যোগাযোগকে বাধা দেয়
• অসামান্য গুণ
> ডিসি কয়েলগুলিতে বিস্তৃত কন্ট্রোল ভোল্টেজ রয়েছে (0.7 ~ 1.25Uc)
> শক্তিশালী ভূমিকম্প প্রতিরোধের
> কম শব্দ
> টার্মিনাল শক্তি বৃদ্ধি
সিজেএক্স 2 40-65A:
> স্থায়ী টর্ক, নির্ভরযোগ্য ইনস্টলেশন
> কমপ্যাক্ট এবং স্থান সঞ্চয়
> ইনস্টল করা সহজ, সময় সাশ্রয় করে
> খরচ বজায় রাখা এবং সংরক্ষণ করা সহজ
Product Series | NC |
---|---|
product name | contactor |
product type | Reversing contactor |
Product short name | CJX2-N |
Contactor application area | Applied to AC loads with a power factor greater than or equal to 0.95 Squirrel cage motor for switching on and off normal start |
Use category | AC-1 AC-3 |
Equipment introduction | Pre-assembled with reversible power supply busbar |
Number of poles | 3P |
Power pole contact composition | 3 NO |
Rated working voltage [Ue] | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
Rated operating current [Ie] | 25 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit 40 A 60 °C) on <= 440 V AC AC-1 for power supply circuits |
Motor power (kW) | 5.5 kW on 220...230 V AC 50/60 Hz 11 kW on 380...400 V AC 50/60 Hz 11 kW on 415...440 V AC 50/60 Hz 15 kW on 500 V AC 50/60 Hz 15 kW on 660...690 V AC 50/60 Hz |
Motor power HP (UL / CSA) | 3 hp on 230/240 V AC 50/60 Hz for 1-phase motors 5 hp on 200/208 V AC 50/60 Hz for 3-phase motors 2 hp on 115 V AC 50/60 Hz for 1-phase motors 7.5 hp on 230/240 V AC 50/60 Hz for 3-phase motors 15 hp on 460/480 V AC 50/60 Hz for 3-phase motors 20 hp on 575/600 V AC 50/60 Hz for 3-phase motors |
Control loop characteristics | AC on 50/60 Hz |
Control loop voltage | 220 V AC 50/60 Hz |
Auxiliary contact type | 1 NO + 1 NC |
Rated impulse withstand voltage [Uimp] | 6 kV in accordance with IEC 60947 |
Overvoltage category | III |
Conventional heating current [Ith] | 10 A on <60 °C for signal circuit 40 A on <60 °C for power supply circuit |
Rated turn-on capability [Irms] | 140 A AC suitable signal circuit in accordance with IEC 60947-5-1 250 A DC suitable signal loop in accordance with IEC 60947-5-1 450 A on 440 V applicable power supply circuit in accordance with IEC 60947 |
Rated breaking capacity | 450 A on 440 V applicable power supply circuit in accordance with IEC 60947 |
Rated short-time withstand current [Icw] | 50 A on <40 °C - 10 minutes for power circuit 120 A on <40 °C - 1 minute for power circuit 240 A on <40 °C - 10 s for power supply circuit 380 A on <40 °C - 1 s for power supply circuit 100 A - 1 s for signal circuits 120 A - 500 ms Applicable signal loop 140 A - 100 ms for signal circuits |
Fuses used with relays | 10 A gG Applicable signal circuit in accordance with IEC 60947-5-1 63 A gG on ...<= 690 V with type 1 for power supply circuit 40 A gG on ...<= 690 V with type 2 for power supply circuit |
Average impedance | 2 mΩ - Ith 40 A 50 Hz for power supply circuits |
Rated insulation voltage [Ui] | 690 V complies with IEC 60947-4-1 600 V CSA certification 600 V UL certification 690 V in accordance with IEC 60947-1 |
Electrical life | 1.65 kA2.s 25 A AC-3 Ue condition <= 440 V 1.4 kA2.s 40 A AC-1 Ue condition <= 440 V |
Power consumption per pole | 1.25 W AC-3 3.2 W AC-1 |
Safety cover | band |
Interlock type | mechanical |
Installation method | Rail mounting Base plate installation |
Standards compliant | EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 EN 60947-4-1 |
certified product | CCC |
Wiring ability | Control circuit: Bolt fastening 1 Cable 1...4 mm2 cord without Control circuit: Bolt fastening 2 Cable 1...4 mm2 cord without Control circuit: Bolt fastening 1 Cable 1...4 mm2 cord Control circuit: Bolt fastening 2 Cable 1...2.5 mm2 cord Control circuit: Bolt fastening 1 Cable 1...4 mm2 hard wire without Control circuit: Bolt fastening 2 Cable 1...4 mm2 hard wire without Power circuit: Bolt fastening 1 Cable 2.5...10 mm2 cord without Power circuit: Bolt fastening 2 Cable 2.5...10 mm2 cord without Power circuit: Bolt tightening 1 Cable 1...10 mm2 cord Power circuit: bolt fastening 2 cable 1.5...6 mm2 cord Power circuit: bolt fastening 1 cable 1.5...10 mm2 hard wire without Power circuit: Bolt fastening 2 Cable 2.5...10 mm2 hard wire without |
Tightening torque | Control circuit: 1.7 Nm Screwdriver with bolt Ø 6 flat Control circuit: 1.7 Nm Screwdriver with No 2 Phillips screw Power circuit: 2.5 Nm Screwdriver with bolt Ø 6 flat Power circuit: 2.5 Nm Screwdriver with No 2 Phillips screw |
Action time | 12...22 ms closed 4...19 ms break |
Safety and reliability | B10d = 1369863 Contactors with nominal load compliance in accordance with EN/ISO 13849-1 B10d = 20000000 mechanical load contactors comply with EN/ISO 13849-1 |
Mechanical life | 15 kA2.s |
Maximum operating frequency | 3600 times / hour on ... <60 °C |
Surge suppression module | No built-in surge suppression module |
---|---|
Control voltage limit | Release: 0.3...0.6 Uc on 50/60 Hz 60 °C) Operation: 0.8...1.1 Uc on 50 Hz 60 °C) Operation: 0.85...1.1 Uc on ... 60 Hz 60 °C) |
(~50Hz pull-in) power consumption (VA) | 70 VA 60 Hz 0.75 20 °C) 70 VA 50 Hz 0.75 20 °C) |
(~50Hz hold) power consumption (VA) | 7.5 VA 60 Hz 0.3 20 °C) 7 VA 50 Hz 0.3 20 °C) |
Heat dissipation | 2...3 W on 50/60 Hz |
Auxiliary contact type | Type mechanical connection 1 NO + 1 NC in accordance with IEC 60947-5-1 Type mirrored to the main contact state 1 NC in accordance with IEC 60947-4-1 |
Signal loop frequency | 25...400 Hz |
Minimum switching current [Imin] | 5 mA suitable signal loop |
Minimum switching voltage | 17 V for signal circuit |
No overlap time | 1.5 ms between power loss NC and NO contact 1.5 ms between the NC and NO contacts |
Insulation resistance | > 10 MΩ for signal circuits |
IP protection level | IP20 front panel complies with IEC 60529 |
---|---|
Protective measures | TH conforms to IEC 60068-2-30 |
Pollution level | 3 |
Operating temperature | -5...60 °C |
Storage ambient temperature | -60...80 °C |
Ambient air temperature | -40...70 °C (allowed under Uc) |
Working elevation | 3000 m without |
Refractory and resistant to abnormal high temperatures | 850 °C in accordance with IEC 60695-2-1 |
Flame retardant | V1 complies with UL 94 |
Shock and vibration resistance | Seismic performance contacts open: 2 gn (5...300 Hz) Seismic performance contact closure: 4 gn (5...300 Hz) Impact resistance contact closure: 15 gn (11ms) Impact resistance contacts open: 8 gn (11ms) |
height | 85 mm |
width | 90 mm |
depth | 92 mm |
product weight | 0.787 kg |
